The goal of hdcuremodels is to allow one to fit a penalized mixture cure model (MCM) when there is a high-dimensional covariate space, such as when high-throughput genomic data are used in modeling time-to-event data, when some subjects will not experience the event of interest. Conventionally, we call the subset of subjects who are immune to the event of interest cured while all other subjects are susceptible to the event.
You can install the development version of hdcuremodels like so:
::install_github("https://github.com/kelliejarcher/hdcuremodels") remotes
After loading the hdcuremodels
and survival
packages, load amltrain
which includes 306 patients
diagnosed with acute myeloid leukemia (AML) who were cytogenetically
normal at diagnosis along with time-to-event outcomes: cryr
is the duration of complete response (in years),
relapse.death
is a censoring variable where 1 indicates the
patient relapsed or died and 0 indicates the patient was alive at last
follow-up. It is of interest to fit a MCM using the expression for 320
transcripts measured using RNA-sequencing as predictor variables.
library(hdcuremodels)
library(survival)
data(amltrain)

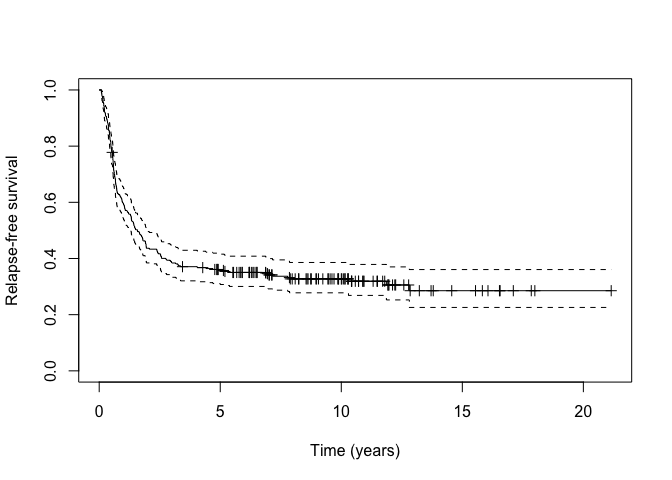

We can inspect the Kaplan-Meier survival curve to determine whether a cure fraction seems to be present.
<- survfit(Surv(cryr, relapse.death) ~ 1, data = amltrain) km_train
As can be seen from the Kaplan-Meier plot, there is a long-plateau
that does not drop down to zero. This may indicate the presence of a
cured fraction. We can test the null hypothesis that the cured fraction
is zero against the alternative hypothesis that the cured fraction is
not zero using the nonzerocure_test
function.
nonzerocure_test(km_train)
#> Warning in Surv(object$time, object$n.event): Invalid status value, converted
#> to NA
#> $proportion_susceptible
#> [1] 0.7146919
#>
#> $proportion_cured
#> [1] 0.2853081
#>
#> $p_value
#> [1] 0.001
#>
#> $time_95_percent_of_events
#> [1] 5.553847
Given the small p-value we reject the null hypothesis and conclude
there is a non-zero cure fraction present. We can also extract the cured
fraction as the Kaplan-Meier estimate beyond the last observed event
using the cure_estimate
function.
cure_estimate(km_train)
#> [1] 0.2853081
We now fit a penalized MCM using the E-M algorithm where the penalty
parameters for incidence and latency, lambda.inc
and
lambda.lat
were previously determined using
cross-validation.
<- cureem(Surv(cryr, relapse.death) ~ .,
fitem data = amltrain,
x_latency = amltrain, model = "cox",
lambda_inc = 0.009993, lambda_lat = 0.02655
)
Coefficient estimates can be extracted from the fitted model using
the coef
for any of these model criteria (“logLik”, “AIC”,
“cAIC”, “mAIC”, “BIC”, “mBIC”, “EBIC”) or by specifying the step at
which the model is desired by specifying the model_select
parameter. For example,
<- coef(fitem, model_select = "cAIC") coef_cAIC
Predictions can be extracted at a given step or information criterion
(“logLik”, “AIC”, “cAIC”, “mAIC”, “BIC”, “mBIC”, “EBIC”) using the
predict
function with model_select
specified.
<- predict(fitem, model_select = "cAIC") train_predict
This returns three objects: p_uncured
is the estimated
probability of being susceptible (\(\hat{p}(\mathbf{x})\)),
linear_latency
is \(\hat{\boldsymbol{\beta}}\mathbf{w}\), while
latency_risk
applies high risk and low risk labels using
zero as the cutpoint from the linear_latency
vector.
Perhaps we want to apply the 0.5 threshold to p_uncured
to
create Cured and Susceptible labels.
<- ifelse(train_predict$p_uncured < 0.50, "Cured", "Susceptible") p_group

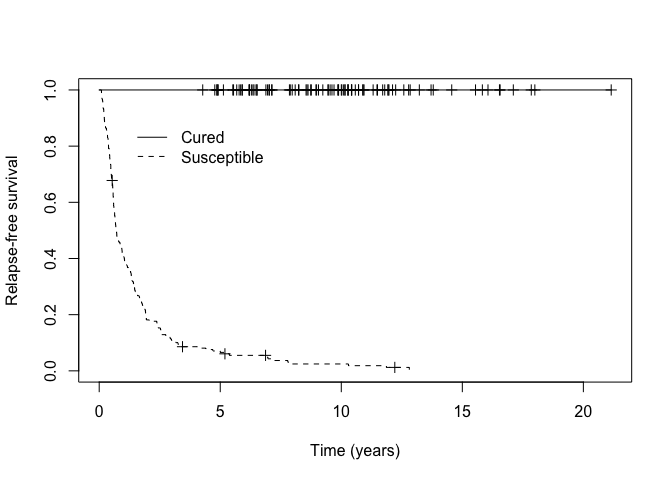

Then we can assess how well our MCM identified patients likely to be cured from those likely to be susceptible visually by examining the Kaplan-Meier curves.
<- survfit(Surv(cryr, relapse.death) ~ p_group, data = amltrain) km_cured

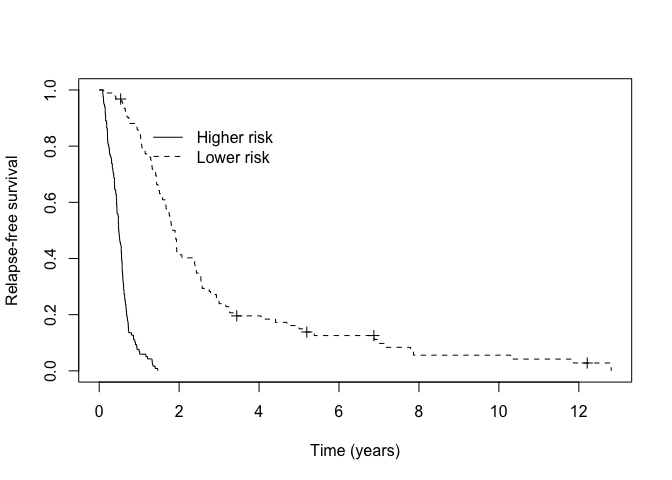

We can assess how well our MCM identified higher versus lower risk patients among those predicted to be susceptible visually by examining the Kaplan-Meier curves.
<- survfit(Surv(cryr, relapse.death) ~ train_predict$latency_risk, data = amltrain, subset = (p_group == "Susceptible")) km_suscept
Of course, we expect our model to perform well on our training data.
We can also assess how well our fitted MCM performs using the
independent test set amltest
. In this case we use the
predict
function with newdata
specified.
<- predict(fitem, newdata = amltest, model_select = "cAIC") test_predict
